Product
Bin-Tech is a system manufacturer specializing in research, development, production, sales and service of water pump,water pump sets. It is committed to providing customers with safe, reliable, efficient, innovative and value-added water solutions.
Vacuum Type Exhaust Type

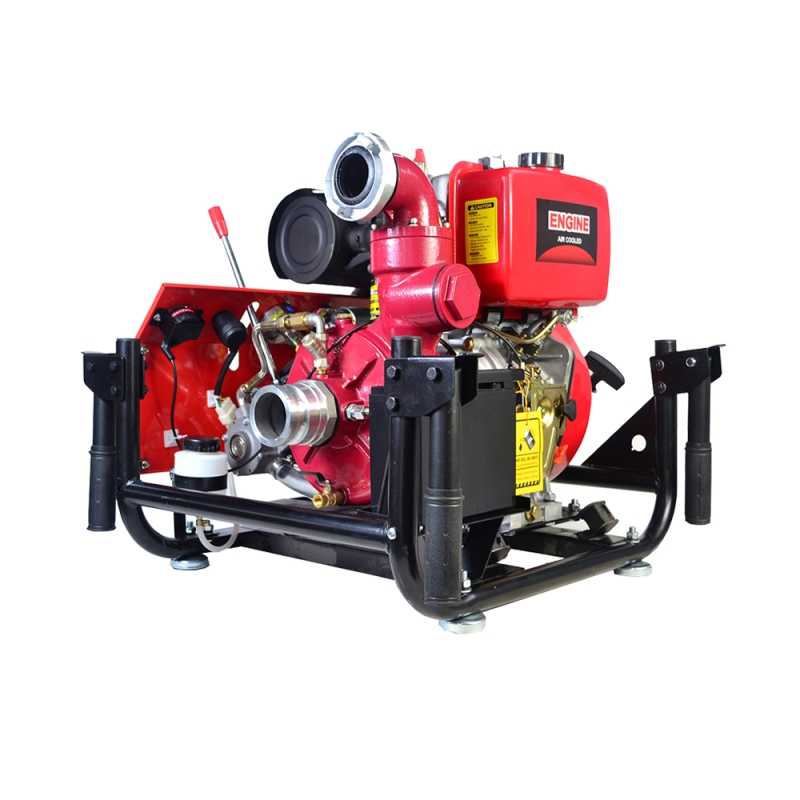

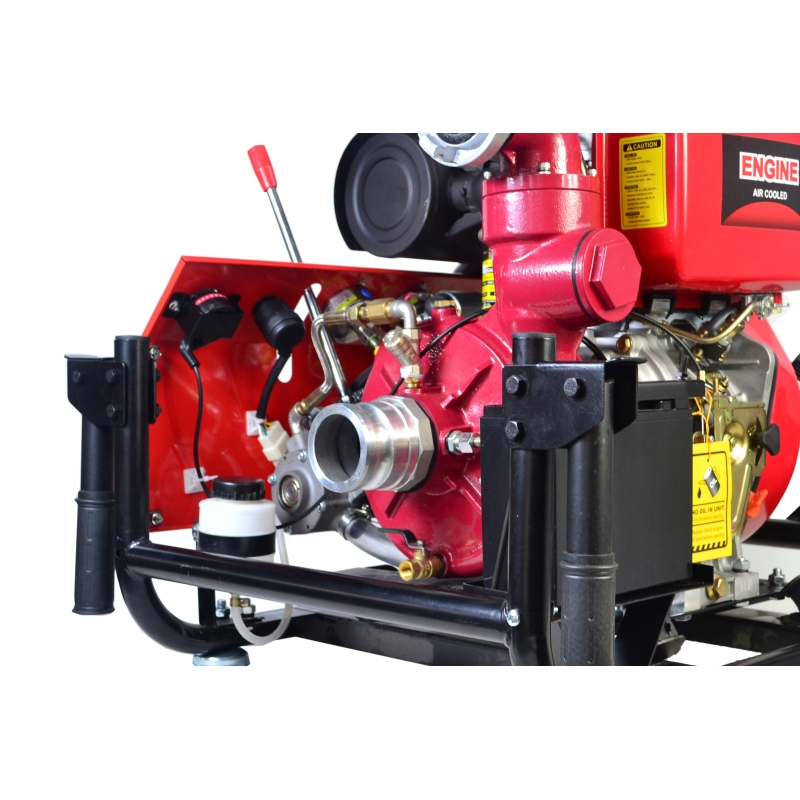

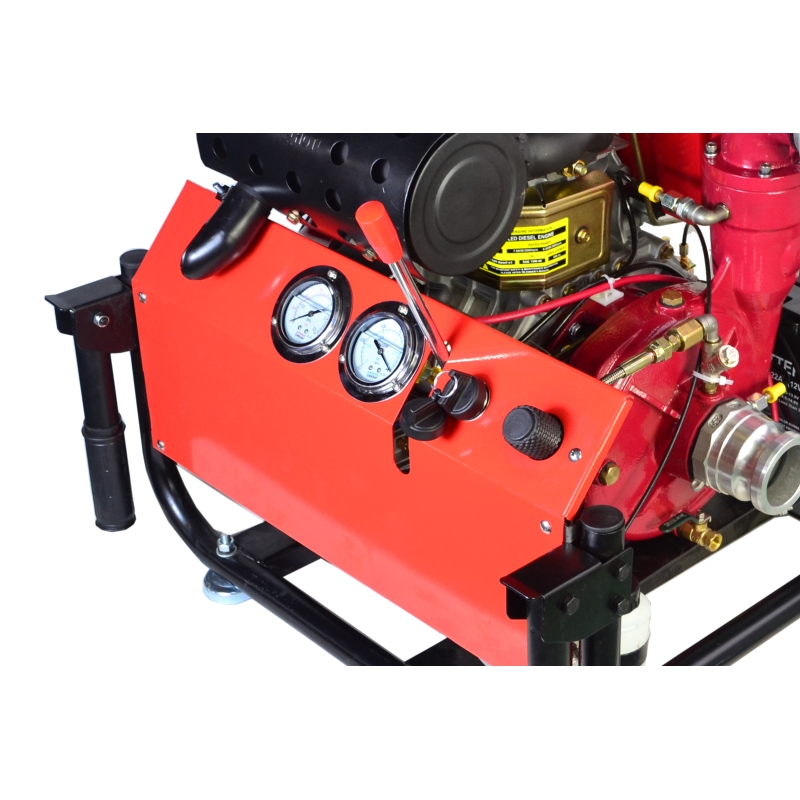

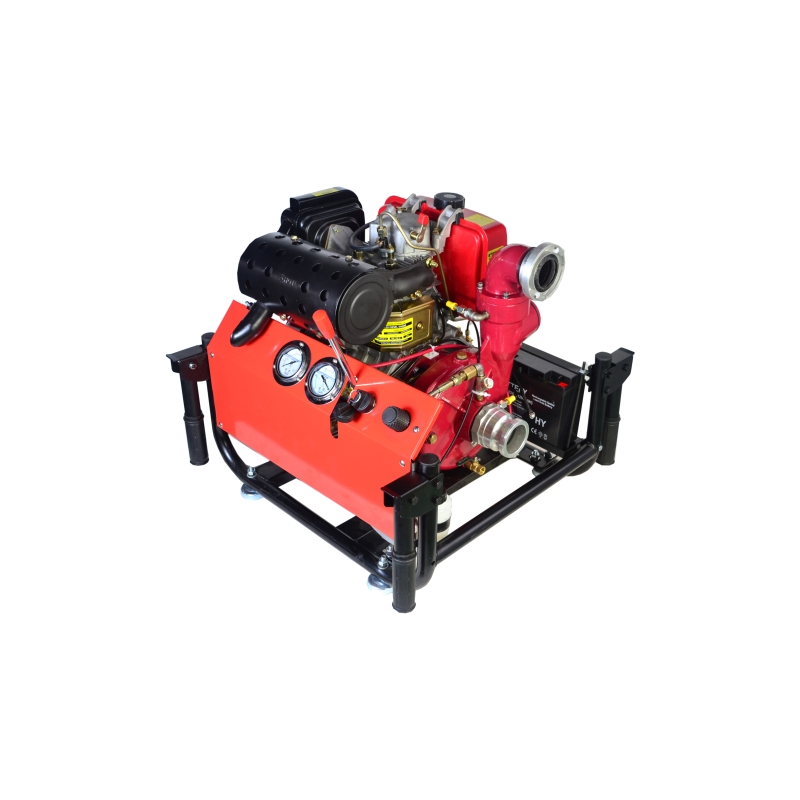

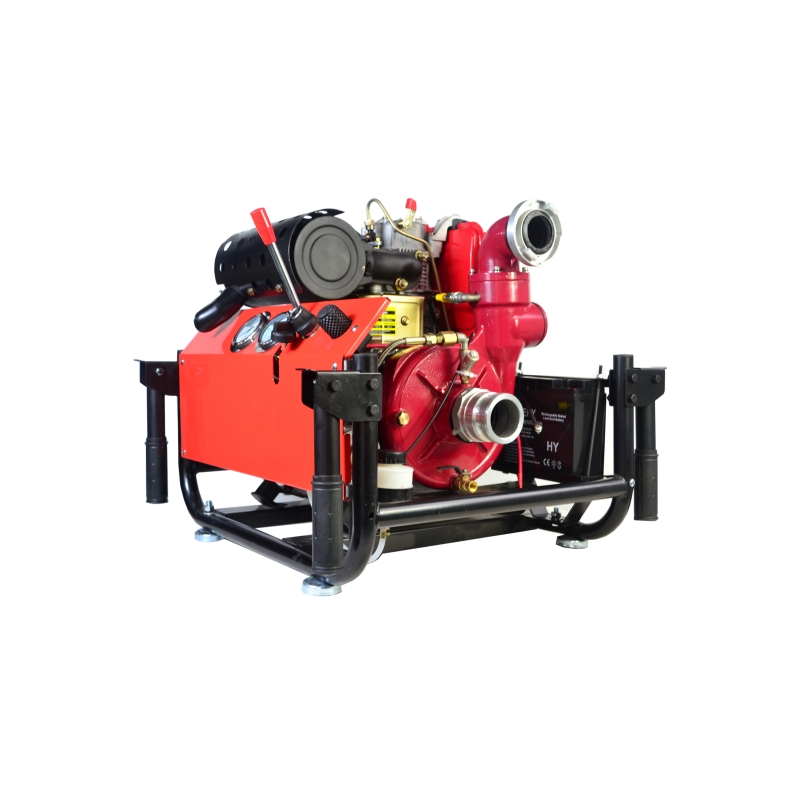

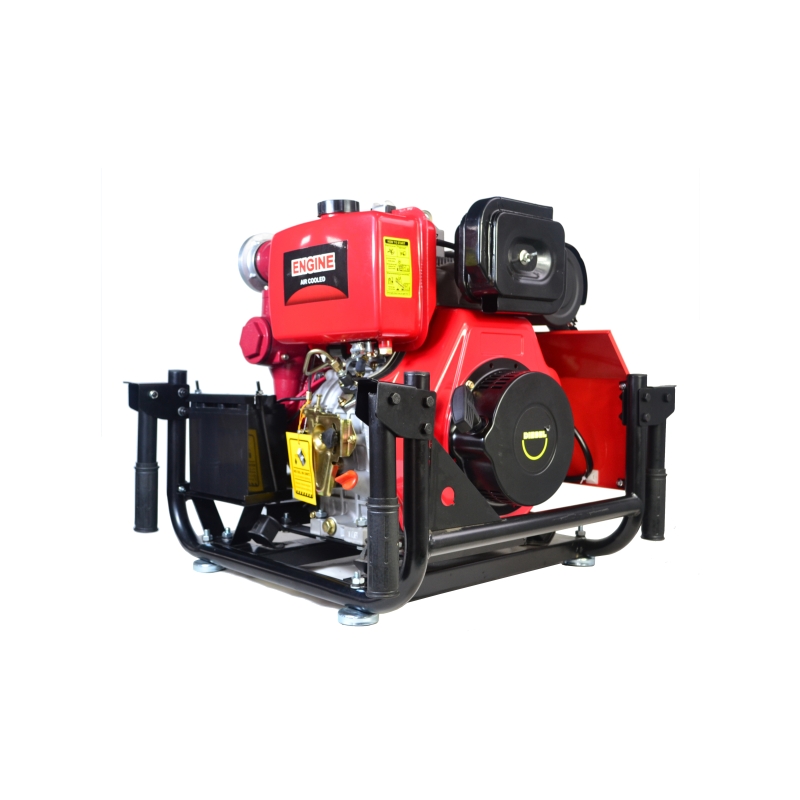

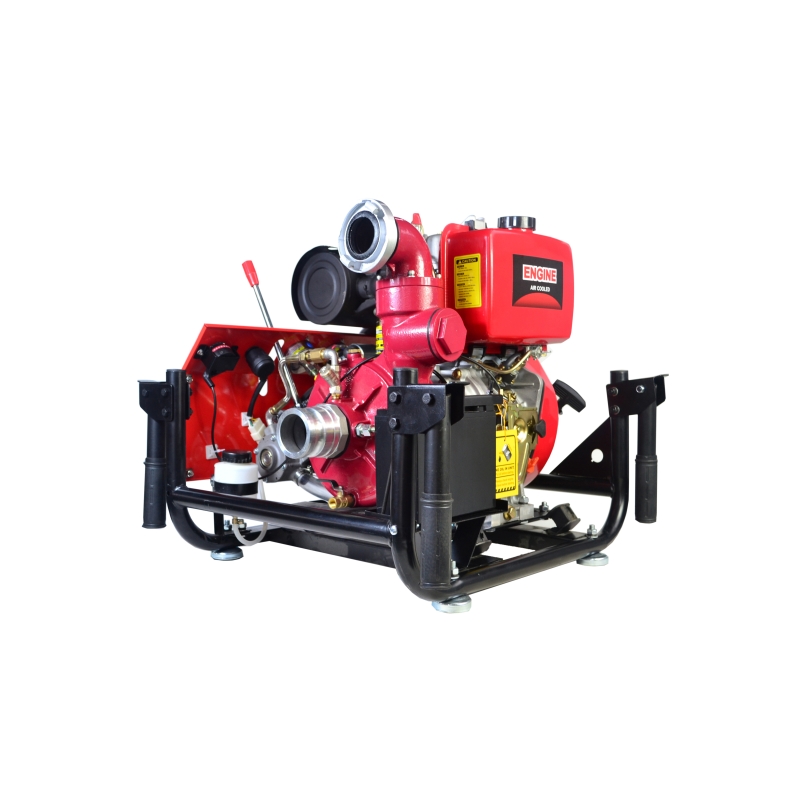

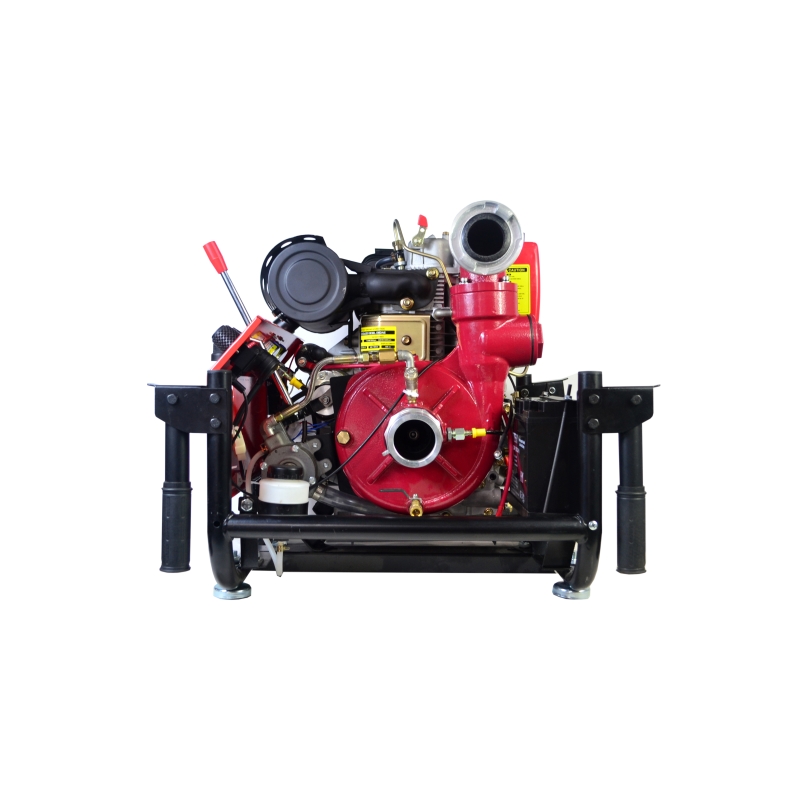

Fire Fighting self-priming pump (Vacuum Type)
HT200 Cast Iron
Exceeding power and environmental expectations. Designed with Bin-Tech engineer, this means a powerful, yet efficient friendly water pump.
Max. Lift technology
Advanced noise reduction design
Quick, easy handling
FEATURE & BENEFITS
Fuel Economical

Our pumps ensure greater combustion efficiency and reduced fuel usage because they are outfitted with ECO engines.

Portability

Special metal frame was used, which significantly decreased weight and ensured ease of use.

A wide range

Our casting iron pumps use HT200 iron material, we modified the flow channel and impeller which allow our pump provide more volume of water and can arrive more high.

Durable construction

Each pump's main components are reinforced for the best possible wear resistance and corrosion resistance.

Simple to maintain

Just removing a few bolts will allow you to clean the interior casing.

SPECIFICATION
Model EXH2.5H-198 EXH3H-208 EXD2.5H-198 EXD3H-208 EXG2.5H-198 EXG3H-208 TW3H-208-10

Inlet/Outlet (mm)

65/65 80/80 65/65 80/80 65/65 80/80

80/80(65)

Max. Fow

(m³/h)/ (GPM)

44/194

44/194

44/194

44/194 44/194 44/194

75/330

Max. Lift (m)

82 90 82 90 82 90 95

Max. Suction (m)

7 7 7 7 7 7 7

Outlet Pressure

(Mpa)

0.77 0.85 0.77 0.85 0.77 0.85 0.9

Max. Pressure (Mpa)

0.82 0.90 0.82 0.90 0.82 0.90 0.95

Suction Type

Vacuum Type Vacuum Type Vacuum Type Vacuum Type Vacuum Type Vacuum Type Vacuum Type

Suction Time (s)

10-15

10-15

10-15

10-15

10-15

10-15

10-15

Speed (RPM)

3600

3600

3600

3600

3600

3600

3600

Engine Model

Honda GX390

Honda GX390

Diesel 192F

Diesel 192F

Gasoline 420

Gasoline 420

Honda GX690 / Diesel 292F

Rated Power (Hp)

13 13 13 13 15 15 25

Starting System

Recoil/Electric

Recoil/Electric

Recoil/Electric

Recoil/Electric

Recoil/Electric

Recoil/Electric

Recoil/Electric

Continuous Working Time (hr)

2-2.5

2-2.5

1.5-2

1.5-2

1.5-2

1.5-2

2-2.5

Tank Capacity (L)

6.5

6.5

5.5

5.5

5.5

5.5

6.5

N.W. / G.W. (KG)

90/120

100/130

90/120

100/130

70/100

70/110

90/120
