Cast Iron pump body - Bin-Bridge Pump Technology

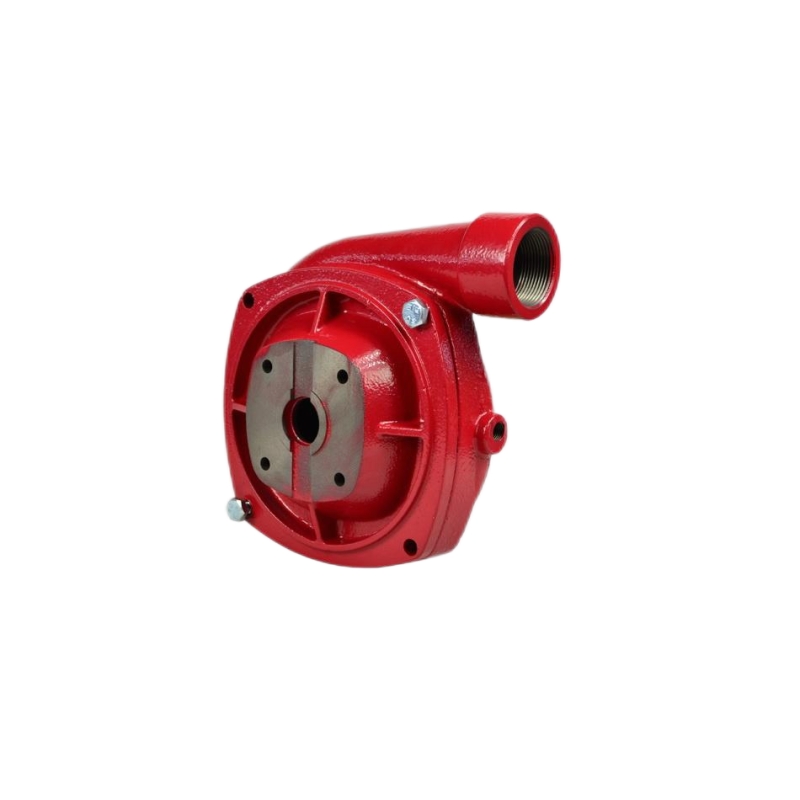

Cast Iron pump body

HT200 Cast Iron

Bin-Tech water pump is designed to move liquids quickly, safely, quietly, and easily. Design with Bin-Tech Engineers, exclusive features and rugged durability, they create pumps that keep every job flowing smoothly.

Economical running

Anti-Rusty Treatment

Durable construction

E-mail CONTACT US

FEATURE & BENEFITS

Fuel Economical

Our pumps ensure greater combustion efficiency and reduced fuel usage because they are outfitted with ECO engines.

Portability

Special metal frame was used, which significantly decreased weight and ensured ease of use.

A wide range

Our casting iron pumps use HT200 iron material, we modified the flow channel and impeller which allow our pump provide more volume of water and can arrive more high.

Durable construction

Each pump's main components are reinforced for the best possible wear resistance and corrosion resistance.

Simple to maintain

Just removing a few bolts will allow you to clean the interior casing.

SPECIFICATION

Model	Inlet / Outlet (mm)	Impeller (mm)	Power (HP)	Max. Head (m)	Max. Flow (m³/h) / (GPM)	Running Time (hr)	Tank Capacity (L)	N.W / G.W (KG)
1.5H-171	25/25	171	6	65	24/104	1 - 1.5	1.2	60/61
2H-175	50/50	175	6	70	27/119	2 - 2.5	3.6	62/63
2H-185	50/50	185	6	75	25/110	2 - 2.5	3.6	63/64
2H-198	50/50	198	10	90	32/141	2 - 2.5	3.6	90/91
2H-208	50/50	208	11	95	33/145	2 - 2.5	3.6	91/92

Model	Inlet / Outlet (mm)	Impeller (mm)	Power (HP)	Max. Head (m)	Max. Flow (m³/h) / (GPM)	Running Time (hr)	Tank Capacity (L)	N.W / G.W (KG)
3H-188	80/80	188	10	75	41/180	2 - 2.5	3.6	72/75
3H-205	80/80	205	11	85	48/211	2 - 2.5	3.6	72/75
3H-208	80/80	208	13	90	44/194	2 - 2.5	3.6	73/76
3H-208-10	80/80	208	20	95	77/227	2 - 2.5	3.6	73/76

Model	Inlet / Outlet (mm)	Impeller (mm)	Power (HP)	Max. Head (m)	Max. Flow (m³/h) / (GPM)	Running Time (hr)	Tank Capacity (L)	N.W / G.W (KG)
4H-150-8	100/100	150	13	40	108/475	2 - 2.5	3.6	104/105
4H-150-25	100/100	150	15	40	130/572	2 - 2.5	3.6	105/106
4H-170-8	100/100	170	13	52	90/396	2 - 2.5	3.6	105/106
4H-170-25	100/100	170	22	60	140/616	2 - 2.5	3.6	106/107
4H-208-10	100/100	208	22	85	103/453	2 - 2.5	3.6	108/109

Model	Inlet / Outlet (mm)	Impeller (mm)	Power (HP)	Max. Head (m)	Max. Flow (m³/h) / (GPM)	Running Time (hr)	Tank Capacity (L)	N.W / G.W (KG)
4*3H-150-8	100/80	150	13	45	87/383	2 - 2.5	6	105/106
4*3H-150-25	100/80	150	15	45	108/475	2 - 2.5	6	103/104
4*3H-170-8	100/80	170	13	60	94/413	2 - 2.5	6	103/104
4*3H-170-25	100/80	170	20	60	120/528	2 - 2.5	6	104/105
