Self-Priming Square Cast Iron Pump body - Bin-Bridge Pump Technology

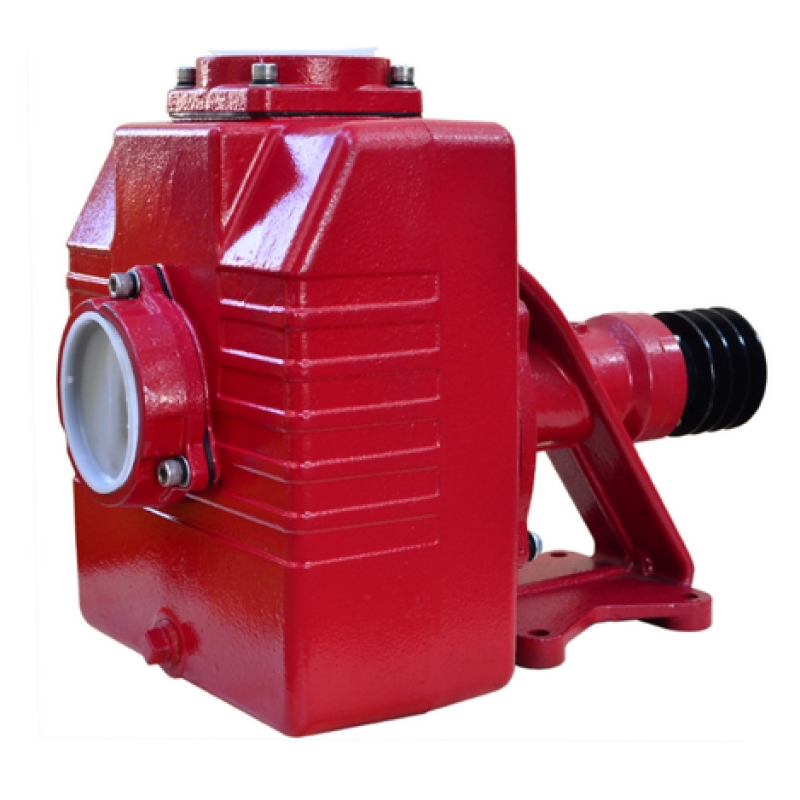

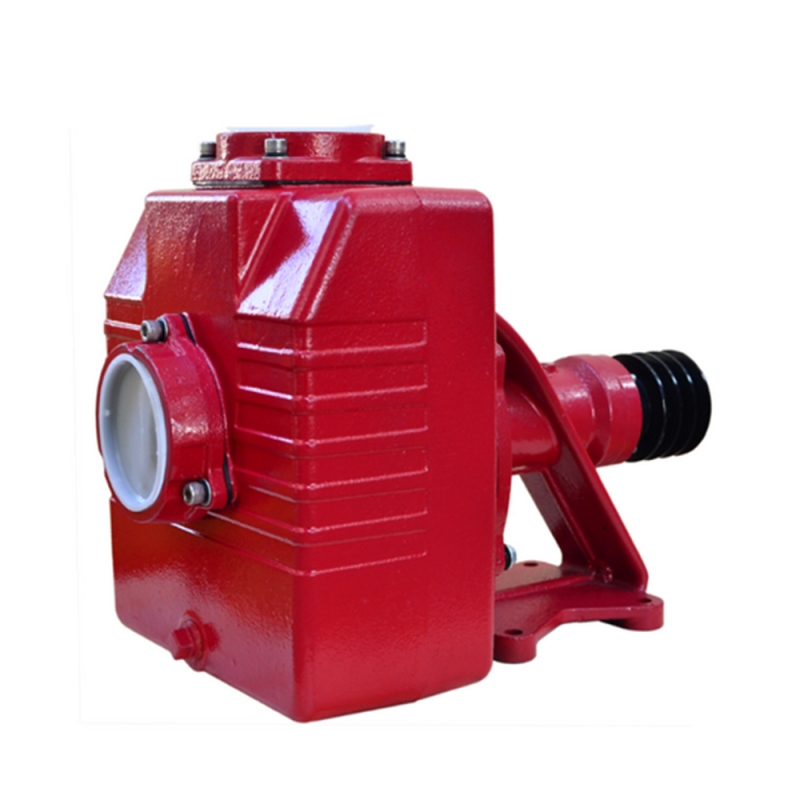

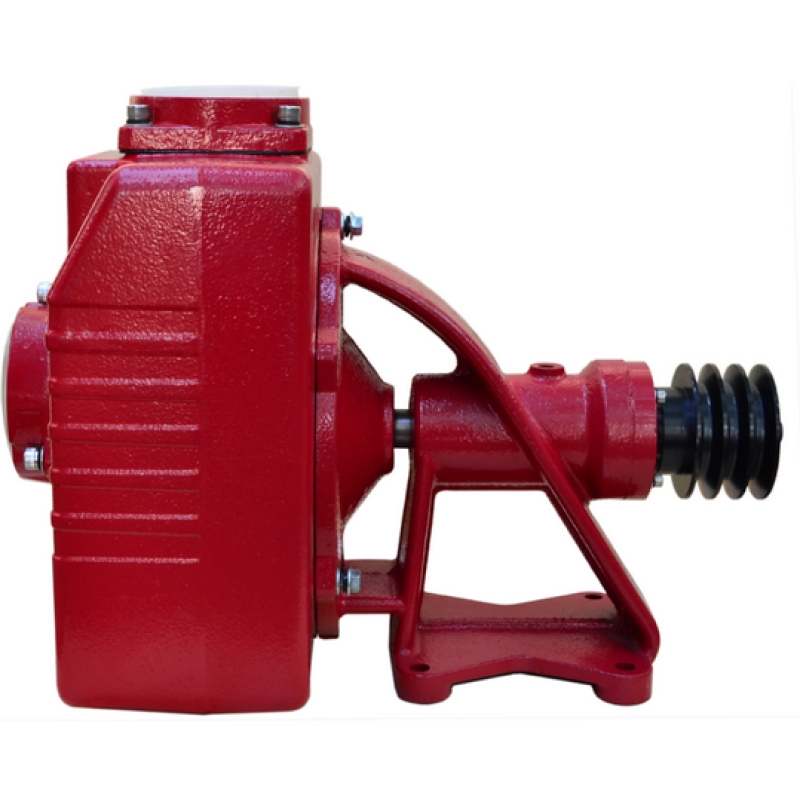

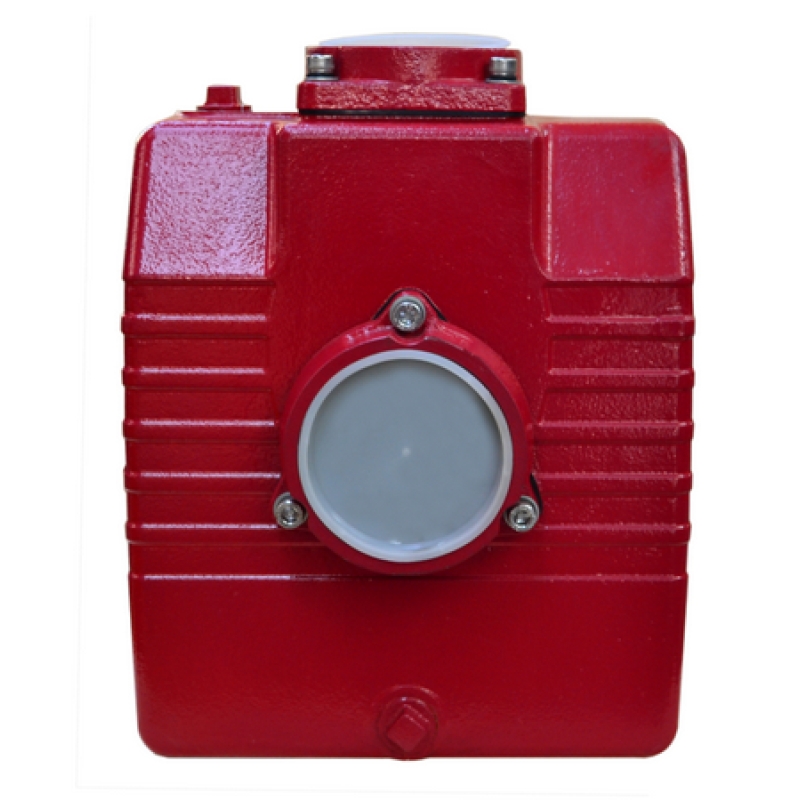

Self-Priming Square Cast Iron Pump body

HT200 Cast Iron

Bin-Tech water pump is designed to move liquids quickly, safely, quietly, and easily. Design with Bin-Tech Engineers, exclusive features and rugged durability, they create pumps that keep every job flowing smoothly.

Economical running

Anti-Rusty Treatment

Durable construction

E-mail CONTACT US

FEATURE & BENEFITS

Fuel Economical

Our pumps ensure greater combustion efficiency and reduced fuel usage because they are outfitted with ECO engines.

Portability

Special metal frame was used, which significantly decreased weight and ensured ease of use.

A wide range

Our casting iron pumps use HT200 iron material, we modified the flow channel and impeller which allow our pump provide more volume of water and can arrive more high.

Durable construction

Each pump's main components are reinforced for the best possible wear resistance and corrosion resistance.

Simple to maintain

Just removing a few bolts will allow you to clean the interior casing.

SPECIFICATION

Model	Inlet / Outlet (mm)	Impeller (mm)	Power (HP)	Max. Head (m)	Max. Flow (m³/h) / (GPM)	Running Time (hr)	Tank Capacity (L)	N.W / G.W (KG)
3H-152	80/80	152	11	47	65/286	2	3.6	63/70
4H-152	100/100	152	11	45	74/325	2	6	64/71
3H-152	80/80	152	13	46	67/295	2	3.6	63/70
4H-152	100/100	152	13	46	74/325	2	6	64/71
3H-152	80/80	152	15	46	67/295	2	3.6	63/70
4H-152	100/100	152	15	46	74/325	2	6	64/71
