Our pumps ensure greater combustion efficiency and reduced fuel usage because they are outfitted with ECO engines.
Special metal frame was used, which significantly decreased weight and ensured ease of use.
Our casting iron pumps use HT200 iron material, we modified the flow channel and impeller which allow our pump provide more volume of water and can arrive more high.
Each pump's main components are reinforced for the best possible wear resistance and corrosion resistance.
Just removing a few bolts will allow you to clean the interior casing.

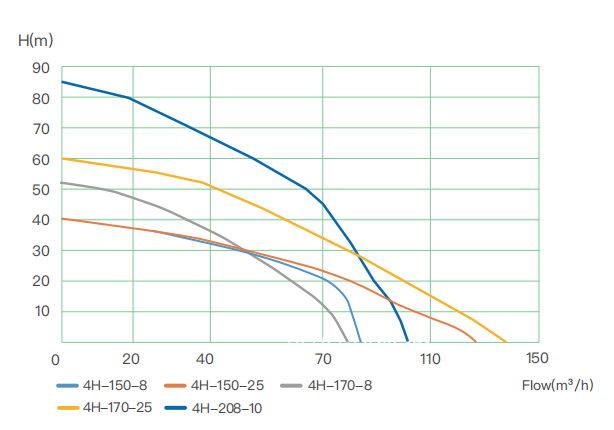

| Model |
Inlet / Outlet (mm) |
Impeller (mm) |
Power (HP) |
Max. Head (m) |
Max. Flow (m3/h) / (GPM) |
Running Time (hr) |
Tank Capacity (L) |
N.W / G.W (KG) |
| 4H-150-8 | 100/100 | 150 | 13 | 40 | 108/475 | 2 - 2.5 | 3.6 | 104/105 |
| 4H-150-25 | 100/100 | 150 | 15 | 40 | 130/572 | 2 - 2.5 | 3.6 | 105/106 |
| 4H-170-8 | 100/100 | 170 | 13 | 52 | 90/396 | 2 - 2.5 | 3.6 | 105/106 |
| 4H-170-25 | 100/100 | 170 | 22 | 60 | 140/616 | 2 - 2.5 | 3.6 | 106/107 |
| 4H-208-10 | 100/100 | 208 | 22 | 85 | 103/453 | 2 - 2.5 | 3.6 | 108/109 |

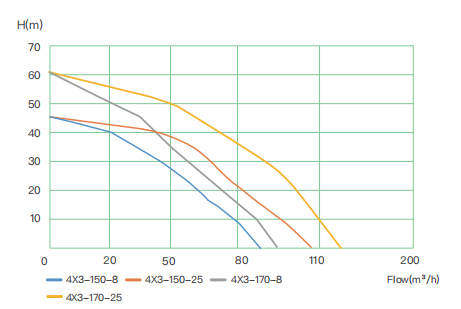

| Model |
Inlet / Outlet (mm) |
Impeller (mm) |
Power (HP) |
Max. Head (m) |
Max. Flow (m3/h) / (GPM) |
Running Time (hr) |
Tank Capacity (L) |
N.W / G.W (KG) |
| 4*3H-150-8 | 100/80 | 150 | 13 | 45 | 87/383 | 2 - 2.5 | 6 | 105/106 |
| 4*3H-150-25 | 100/80 | 150 | 15 | 45 | 108/475 | 2 - 2.5 | 6 | 103/104 |
| 4*3H-170-8 | 100/80 | 170 | 13 | 60 | 94/413 | 2 - 2.5 | 6 | 103/104 |
| 4*3H-170-25 | 100/80 | 170 | 20 | 60 | 120/528 | 2 - 2.5 | 6 | 104/105 |
